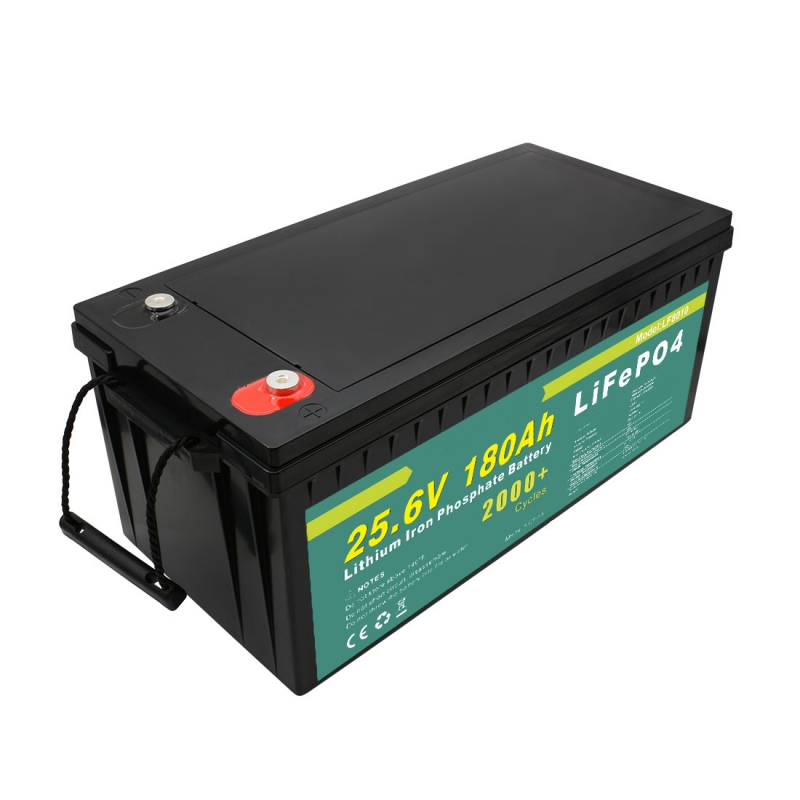

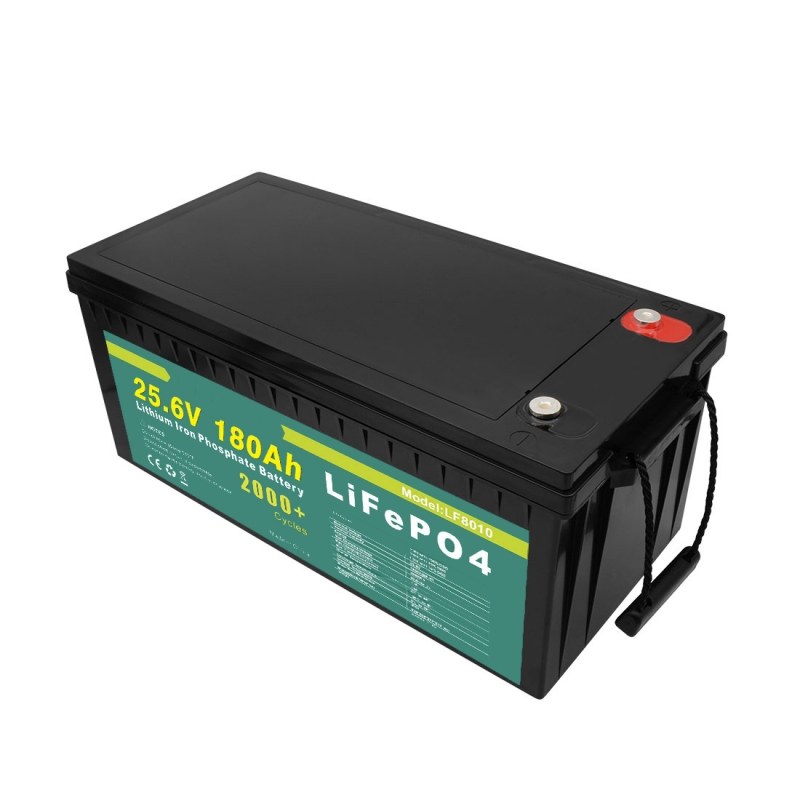

25.6V 180Ah LFP Battery

Name:	25.6V 180Ah LFP Battery
Power:	4608Wh
Material:	ABS
Max. charge voltage:	29.2V
Discharge cut-off voltage:	28V
Charge current:	20A
MAX. charge current(A):	50A
MAX. Continuous discharge current(A):	80A
Dimension:	522x238x217mm
Weight:	31Kg
Discharging Temperature:	-10~60℃
Certification:	CE/IEC/RoHS/UN38.3/FCC
Application:	Electric Power Systems, Solar Energy Storage Systems, UPS
Inquiry

Products Description

Electrical	Nominal Voltage	25.6V
Characteristics	Nominal Capacity	180Ah@0.2C
	Energy	4608Wh
	Internal Resistance	≤35mΩ
	Cycle Life	2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
	Self Discharge	≤3.5% per month at 25℃
Standard Charging	Max.Charging Voltage	28.0~29.2V
	Charging Mode	At 0℃~45℃ temperature, charged to 29.2V at a constant current of 0.2C5A, and
		then,changed continuously with constant voltage of 29.2V until the current was not
		more than 0.02C（A）.
	Charging Current	20A
	Max.Charging Current	35A
Standard Discharging	Discharging Current	20A
	Max. Continuous Current	35A
	Max.Pulse Current	70A(<3S）
	Discharging Cut-off Voltage	20
Operating Condition	Charge Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
	Discharge Temperature	-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
	Storage Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
	Water Dust Resistance	IP55
Structure	Cell & Format	GSP4017320,8S1P
	Casing	Plastic
	Dimension(LWH*TH)	522238217*217
	Weight	Approx. 31Kg
	Terminal	M8
