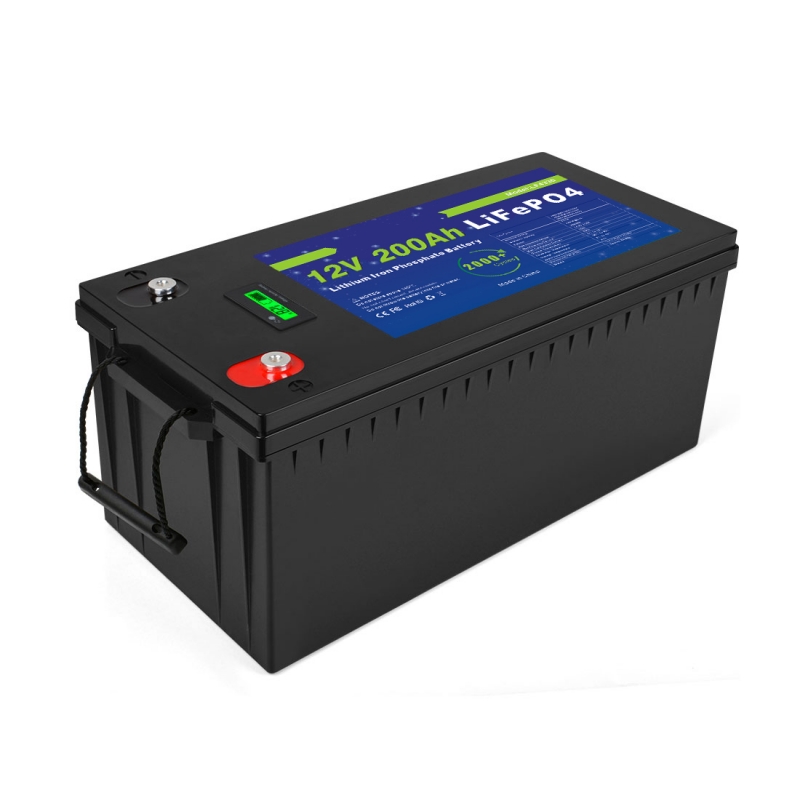

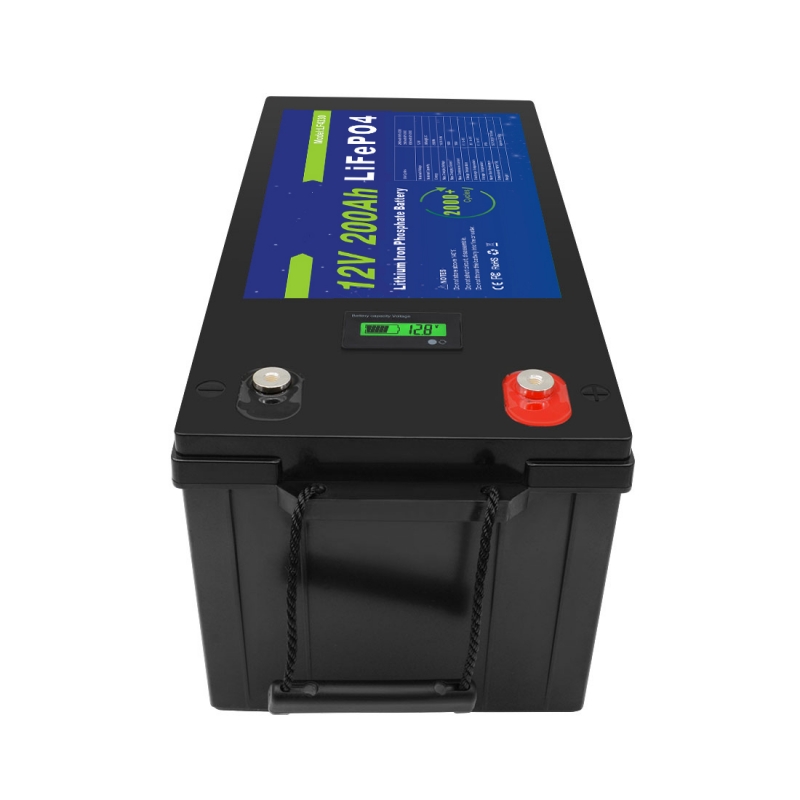

12.8V 200Ah LFP Battery
| Name: | 12.8V 200Ah LFP Battery |
|---|---|
| Power: | 2560Wh |
| Capacity: | 200Ah |
| Internal Resistance:: | ≤35mΩ |
| Cycle Life: | 2000 Cycles |
| Dimension: | 522x238x217x217mm |
| Weight: | 23.5Kg |
| Discharging Current: | 150A |
| Max. Continuous Current: | 150A |
| Cell & Format: | 32700 4S34P |
| Resistance: | IP55 |
| Casing: | Plastic |
| Certification: | CE/IEC/RoHS/UN38.3/FCC |
| Application: | BOATS, Golf Carts, Electric Bicycles/Scooters, electric vehicles, Solar Energy Storage Systems, UPS,Lighting |
| Inquiry |
Products Description
| Electrical Characteristics | Nominal Voltage | 12.8V |
| Nominal Capacity | [email protected] | |
| Energy | 2560Wh | |
| Internal Resistance | ≤35mΩ | |
| Cycle Life | 2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity | |
| Self Discharge | ≤3.5% per month at 25℃ | |
| Standard Charging | Max.Charging Voltage | 14.0~14.6V |
| Charging Mode | At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C | |
| Charging Current | 100A | |
| Max.Charging Current | 100A | |
| Standard Discharging | Discharging Current | 150A |
| Max. Continuous Current | 150A | |
| Max.Pulse Current | 300A(<3S） | |
| Discharging Cut-off Voltage | 10 | |
| Operating Condition | Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
| Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | |
| Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |
| Water Dust Resistance | IP55 | |
| Structure | Cell & Format | IFR32700 N60,4S34P |
| Casing | Plastic | |
| Dimension(L*W*H*TH) | 522*238*217*217 | |
| Weight | Approx. 23.5Kg | |
| Terminal | M8 |
