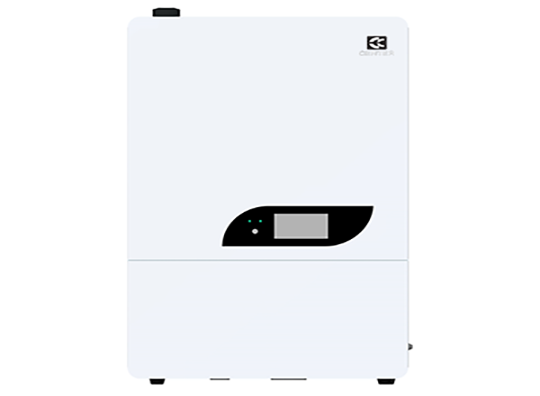

Residential Power Wall-51.2V100AH
| Name: | Residential Power Wall-51.2V100AH |
|---|---|
| Key Feature: | Residential Power Wall-51.2V100AH |
| Power: | 5120Wh |
| Internal Resistance:: | ≤35mΩ |
| Cycle Life: | 2000 Cycles |
| Cell & Format:: | GSP34135214F (16S1P) |
| Battery Size: | 454728206mm |
| Weight: | 60.7KG |
| Max.Charging voltage: | 58.4±0.2 V |
| Discharging Current: | 100A |
| Self Discharge: | ≤3.5 per month at 25℃ |
| Warranty: | 3 years |
| Application: | Electric Power Systems, Solar Energy Storage Systems, UPS |
| Certification: | CE/IEC/RoHS/UN38.3/FCC |
| Inquiry |
Products Description
| Electrical | Nominal Voltage | 51.2V |
| Characteristics | Nominal Capacity | 100Ah@1C |
| Energy | 5120Wh | |
| Internal Resistance | ≤35mΩ | |
| Cycle Life | 2000 Cycles @ 1C Charging/Discharging ,Until 70% Capacity | |
| Self Discharge | ≤3.5% per month at 25℃ | |
| Standard Charging | Max.Charging Voltage | 58.4±0.2 |
| Charging Mode | At 0℃~45℃ temperature, charged to 58.4V at a constant current of 0.2C, and then,changed continuously with constant voltage of 58.4V until the current was not more than 0.02C | |
| Charging Current | 100A | |
| Max.Charging Current | 100A | |
| Standard Discharging | Discharging Current | 100A |
| Max. Continuous Current | 100A | |
| Max.Pulse Current | 110A(10S) Can be set up | |
| Discharging Cut-off Voltage | 40 | |
| Operating Condition | Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
| Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | |
| Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |
| Water Dust Resistance | IP54 | |
| Structure | Cell & Format | GSP34135214F (16S1P) |
| Casing | Metal | |
| Max.Dimension (L*W*H) | 454*728*206mm | |
| Weight | Approx. 60.7Kg | |
| Communication Interface | RS485 (8P8C) | |
| Display | LCD |
