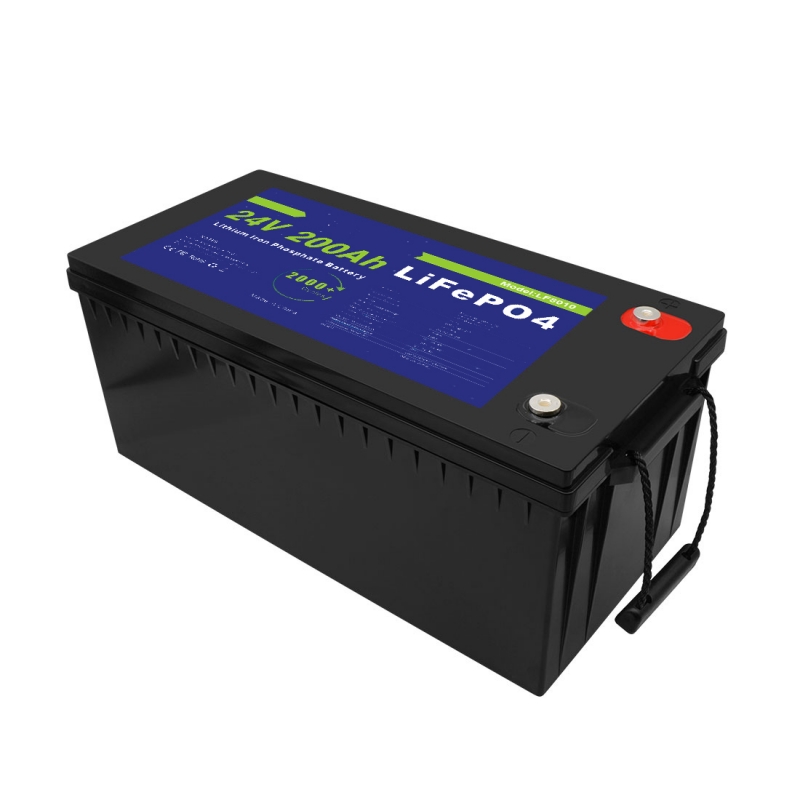

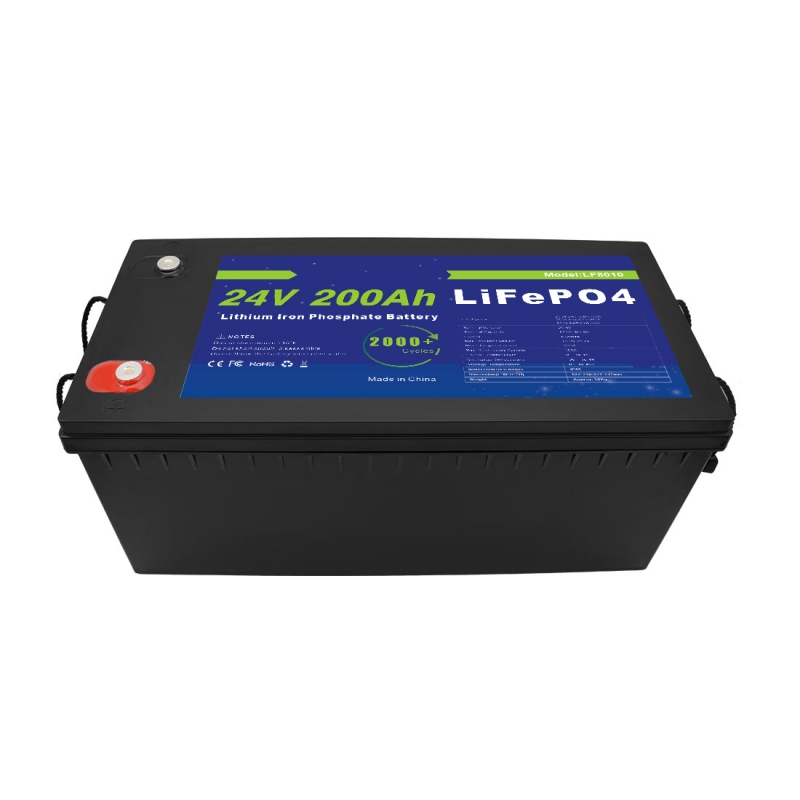

25.6V 200Ah LFP Battery
| Name: | 25.6V 200Ah LFP Battery |
|---|---|
| Power: | 5120Wh |
| Capacity: | 200Ah |
| Internal Resistance:: | ≤35mΩ |
| Cycle Life: | 2000 Cycles |
| Dimension: | 522x238x217x217 |
| Weight: | 36Kg |
| Max.Charging Voltage: | 28.0~29.2V |
| Max.Pulse Current: | 250A(100mS) |
| Warranty: | 3years |
| Terminal: | M8 |
| Certification: | CE/IEC/RoHS/UN38.3/FCC |
| Application: | Electric Power Systems, Solar Energy Storage Systems, UPS |
| Inquiry |
Products Description
| Electrical | Nominal Voltage | 25.6V |
| Characteristics | Nominal Capacity | [email protected] |
| Energy | 5120Wh | |
| Internal Resistance | ≤35mΩ | |
| Cycle Life | 2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity | |
| Self Discharge | ≤3.5% per month at 25℃ | |
| Standard Charging | Max.Charging Voltage | 28.0~29.2V |
| Charging Mode | At 0℃~45℃ temperature, charged to 29.2V at a constant current of 0.2C5A, and then,changed continuously with constant voltage of 29.2V until the current was not more than 0.02C（A）. | |
| Charging Current | 100A | |
| Max.Charging Current | 150A | |
| Standard Discharging | Discharging Current | 100A |
| Max. Continuous Current | 150A | |
| Max.Pulse Current | 250A(<100mS） | |
| Discharging Cut-off Voltage | 20 | |
| Operating Condition | Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
| Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | |
| Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |
| Water Dust Resistance | IP55 | |
| Structure | Cell & Format | 200Ah,8S1P |
| Casing | Plastic | |
| Dimension(L*W*H*TH) | 522*238*217*217 | |
| Weight | Approx. 36Kg | |
| Terminal | M8 |
