| Electrical | Nominal Voltage | 51.2V |
| Characteristics | Nominal Capacity | [email protected] |
| Energy | 2560Wh |
| Internal Resistance | ≤35mΩ |
| Cycle Life | 2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity |
| Self Discharge | ≤3.5% per month at 25℃ |
| Standard Charging | Max.Charging Voltage | 58.4±0.2 |
| Charging Mode | At 0℃~45℃ temperature, charged to 58.4V at a constant current of 0.2C, and then,changed continuously with constant voltage of 58.4V until the current was notmore than 0.02C |
| Charging Current | 50A |
| Max.Charging Current | 50A |
| Standard Discharging | Discharging Current | 50A |
| Max. Continuous Current | 50A |
| Max.Pulse Current | 60A(10S) Can be set up |
| Discharging Cut-off Voltage | 40 |
| Operating Condition | Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
| Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity |
| Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
| Water Dust Resistance | IP54 |
| Structure | Cell & Format | 32700 (16S8P) |
| Casing | Metal |

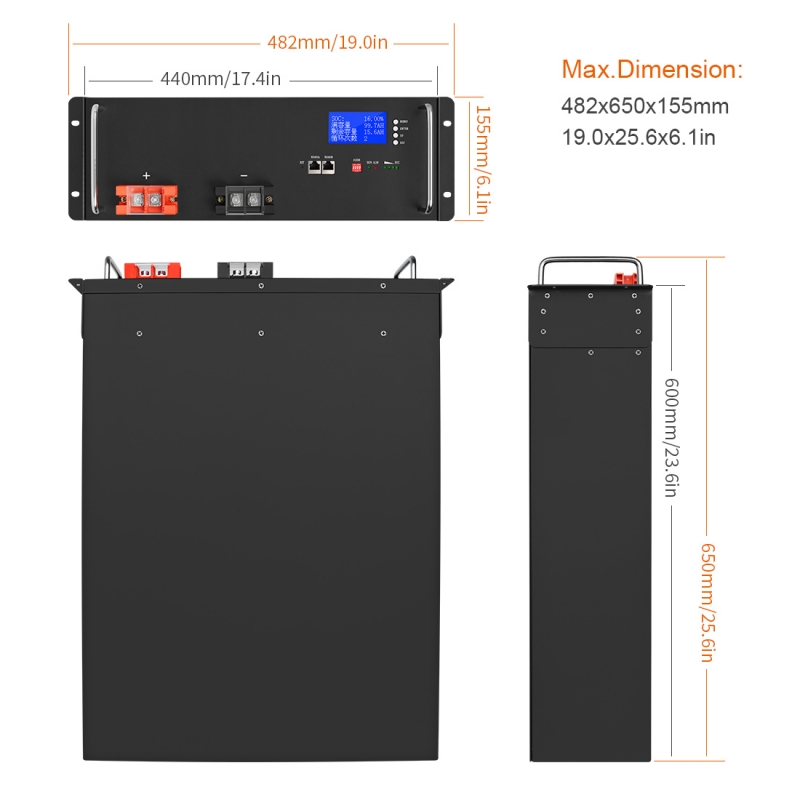

| Max.Dimension (L*W*H) | 482*650*155mm（3.5U） |
| Weight | Approx. 33Kg |
| Communication Interface | RS485 (8P8C) |
| Display | LCD |
