Small Battery
| Name: | Small Battery |
|---|---|
| Features: | Sealed maintenance free |
| Material: | ABS |
| Voltage: | 12V |
| Design life: | 10Years |
| Warranty: | 1 years |
| Certification: | ISO,CE,RoHS,IEC |
| OEM: | Customize |
| Application: | UPS,Solar,Toys, Power Tools, Electric Bicycles/Scooters, |
| Inquiry |
Products Description
| Model | Volage | Capacity(Ah) | Length | Width | Height | Total | Weight |
| (V) | (/20hr) | mm | mm | mm | mm | kg | |
| TC12-0.8 | 12 | 0.8 | 96 | 25 | 62 | 62 | 0.31 |
| TC12-1.2 | 12 | 1.2 | 97 | 43 | 52 | 58 | 0.59 |
| TC12-1.2-A | 12 | 1.2 | 97 | 48 | 51 | 57 | 0.63 |
| TC12-2 | 12 | 2 | 181 | 35 | 61 | 67 | 0.7 |
| TC12-2-C | 12 | 2 | 144 | 24 | 65 | 65 | 0.6 |
| TC12-2-M | 12 | 2 | 150 | 20 | 90 | 90 | 0.68 |
| TC12-2.2 | 12 | 2.2 | 70 | 47 | 98 | 104 | 0.7 |
| TC12-2.3-C | 12 | 2.3 | 182 | 24 | 61 | 61 | 0.71 |
| TC12-2.3 | 12 | 2.3 | 178 | 35 | 61 | 67 | 0.8 |
| TC12-2.6 | 12 | 2.6 | 70 | 47 | 98 | 104 | 0.9 |
| TC12-2.8 | 12 | 2.8 | 67 | 67 | 97 | 102 | 1.15 |
| TC12-2.8-S | 12 | 2.8 | 104 | 48 | 70 | 70 | 1 |
| TC12-3.3 | 12 | 3.3 | 134 | 67 | 61 | 67 | 1.3 |
| TC12-4 | 12 | 4 | 90 | 70 | 101 | 107 | 1.41 |
| TC12-4-S | 12 | 4 | 140 | 48 | 102 | 102 | 1.5 |

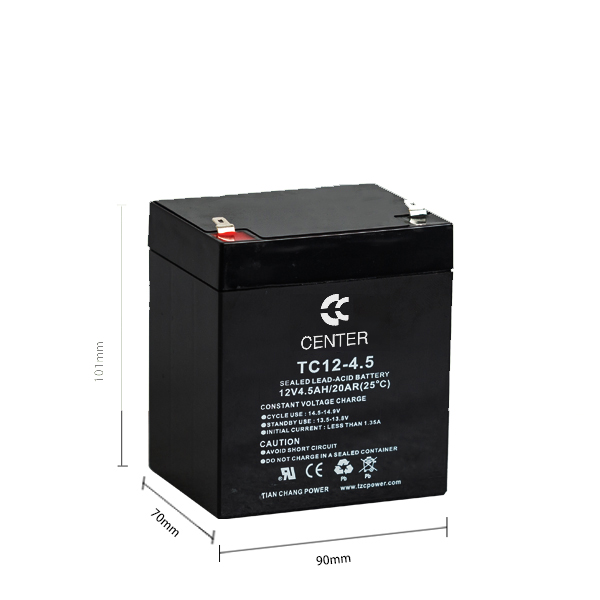

| TC12-4.5 | 12 | 4.5 | 90 | 70 | 101 | 107 | 1.4 |
| TC12-5 | 12 | 5 | 90 | 70 | 101 | 107 | 1.5 |
| TC12-5-A | 12 | 5 | 151 | 52 | 94 | 100 | 1.5 |
| TC12-5-S | 12 | 5 | 140 | 48 | 102 | 102 | 1.6 |
| TC12-6 | 12 | 6 | 90 | 70 | 101 | 107 | 1.7 |
| TC12-6.5 | 12 | 6.5 | 151 | 65 | 94 | 100 | 2 |
| TC12-6.5-A | 12 | 6.5 | 152 | 52 | 94 | 99 | 1.9 |

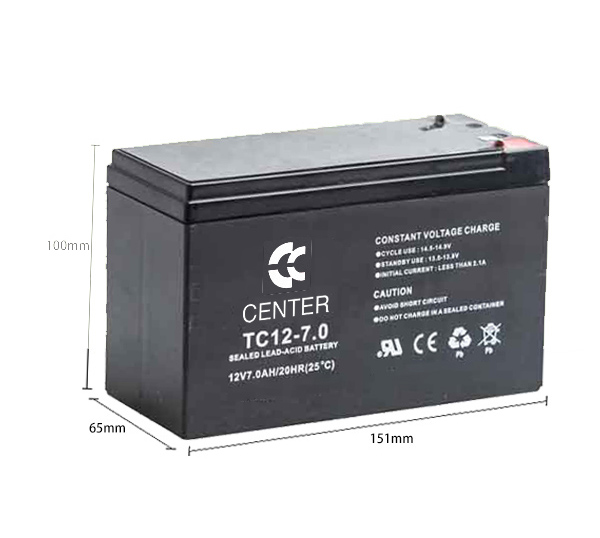

| TC12-7 | 12 | 7 | 151 | 65 | 94 | 100 | 2.1 |
| TC12-7-A | 12 | 7 | 151 | 65 | 94 | 100 | 2.2 |
| TC12-7.2 | 12 | 7.2 | 151 | 65 | 94 | 100 | 2.2 |
| TC12-7.5 | 12 | 7.5 | 151 | 65 | 94 | 100 | 2.3 |
| TC12-8 | 12 | 8 | 151 | 65 | 94 | 100 | 2.4 |
| TC12-9 | 12 | 9 | 151 | 65 | 94 | 100 | 2.6 |
| TC12-10 | 12 | 10 | 151 | 98 | 95 | 101 | 3.1 |
| TC12-10-A | 12 | 10 | 151 | 65 | 111 | 117 | 2.9 |
| TC12-12 | 12 | 12 | 151 | 98 | 95 | 101 | 3.6 |
| TC12-14 | 12 | 14 | 151 | 98 | 95 | 101 | 4 |
| TC12-15 | 12 | 15 | 181 | 77 | 167 | 167 | 4.7 |
| TC12-17 | 12 | 17 | 181 | 77 | 167 | 167 | 5.2 |
| TC12-18 | 12 | 18 | 181 | 77 | 167 | 167 | 5.3 |
| TC12-20 | 12 | 20 | 181 | 77 | 167 | 167 | 5.4 |
| TC12-22 | 12 | 22 | 181 | 77 | 167 | 167 | 5.6 |
| TC12-24 | 12 | 24 | 166 | 175 | 125 | 125 | 8 |
| TC12-24-A | 12 | 24 | 166 | 125 | 175 | 182 | 8 |
| TC12-26 | 12 | 26 | 166 | 175 | 125 | 125 | 8.4 |
| TC12-28 | 12 | 28 | 166 | 175 | 125 | 125 | 8.8 |
