51.2V 200Ah LFP Battery
| Name: | 51.2V 200Ah LFP Battery |
|---|---|
| Key Feature: | 48V 200Ah Lithium Iron Phosphate (LiFePO4) Battery |
| Power: | 10240Wh |
| Internal Resistance:: | ≤35mΩ |
| Cycle Life: | 2000 Cycles |
| Dimension: | 482x650x244 |
| Weight: | 81Kg |
| Max.Charging Voltage: | 58.4±0.2 |
| Self Discharge: | ≤3.5 per month at 25℃ |
| Casing: | Metal |
| Water Dust Resistance: | IP54 |
| Certification: | CE/IEC/RoHS/UN38.3/FCC |
| Application: | Electric Power Systems, Solar Energy Storage Systems, UPS |
| Inquiry |
Products Description
| Electrical | Nominal Voltage | 51.2V |
| Characteristics | Nominal Capacity | [email protected] |
| Energy | 10240Wh | |
| Internal Resistance | ≤35mΩ | |
| Cycle Life | 2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity | |
| Self Discharge | ≤3.5% per month at 25℃ | |
| Standard Charging | Max.Charging Voltage | 58.4±0.2 |
| Charging Mode | At 0℃~45℃ temperature, charged to 58.4V at a constant current of 0.2C, and then,changed continuously with constant voltage of 58.4V until the current was not | |
| more than 0.02C | ||
| Charging Current | 200A | |
| Max.Charging Current | 200A | |
| Standard Discharging | Discharging Current | 200A |
| Max. Continuous Current | 200A | |
| Max.Pulse Current | 210A(10S) Can be set up | |
| Discharging Cut-off Voltage | 40 | |
| Operating Condition | Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
| Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | |
| Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |
| Water Dust Resistance | IP54 | |
| Structure | Cell & Format | LFP54H4K1 54174201(6.5) (16S1P) |
| Casing | Metal | |

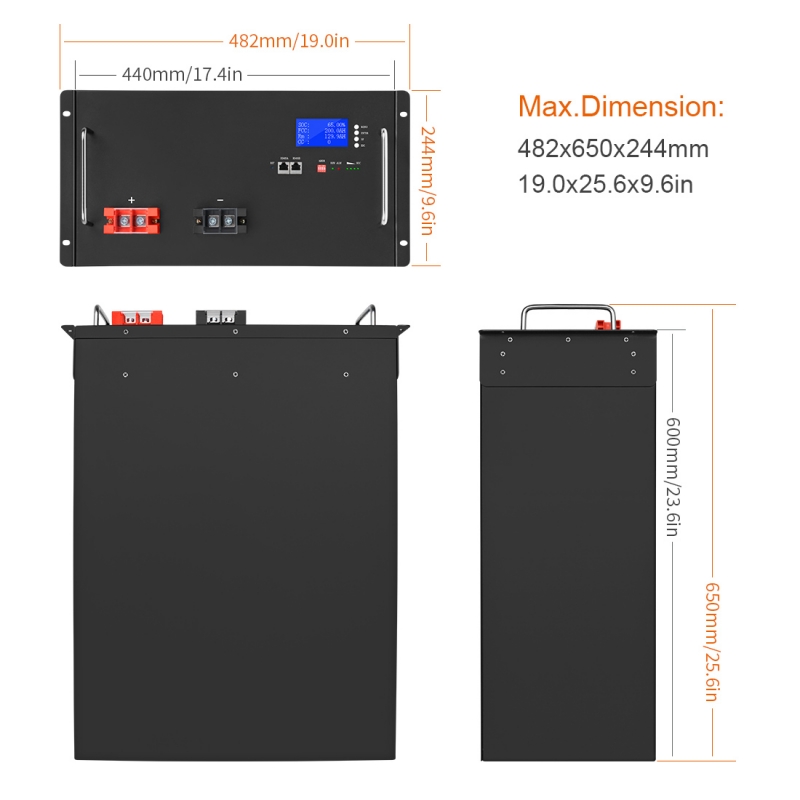

| Max.Dimension (L*W*H) | 482*650*244mm（5.5U） | |
| Weight | Approx.81Kg | |
| Communication Interface | RS485 (8P8C) | |
| Display | LCD |
