Gel Battery

Name:	Gel Battery
Features:	Sealed maintenance free
Material:	ABS
Voltage:	12V
Design life:	15Years
Cycle life:	300-500 times
Warranty:	2 years
OEM:	Customize
Certification:	ISO,CE,RoHS,IEC
Application:	UPS,Solar,Toys, Power Tools, Electric Bicycles/Scooters,
Inquiry

Products Description

Model	Volage	Capacity(Ah)	Length	Width	Height	Total	Weight
Model	(V)	(/20hr)	mm	mm	mm	mm	kg
TC12-33-G	12	33	195	130	159	180	10.2
TC12-36-G	12	36	195	130	159	180	11
TC12-38-G	12	38	197	165	175	182	13
TC12-40-G	12	40	197	165	175	182	13
TC12-45-G	12	45	198	166	170	170	14
TC12-55-G	12	55	229	138	208	230	17
TC12-60-G	12	60	260	168	211	233	20
TC12-65-G	12	65	350	166	174	174	20.5
TC12-70-G	12	70	260	168	211	233	21.5
TC12-75-G	12	75	260	168	211	233	23
TC12-80-G	12	80	350	166	174	174	23.5
TC12-90-G	12	90	306	168	211	215	27.2

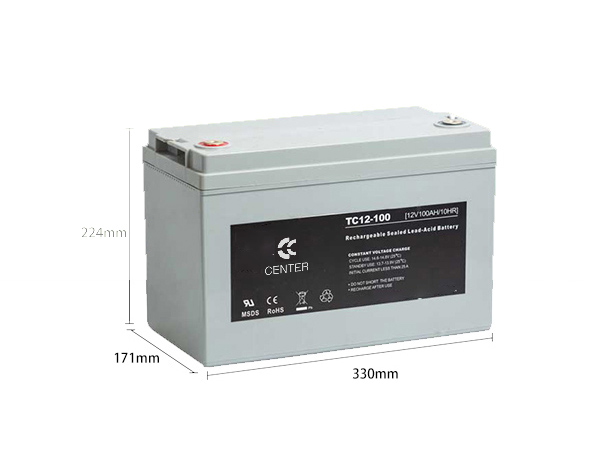

TC12-100-EG	12	100	331	171	214	224	29
TC12-100-G	12	100	331	171	214	224	31
TC12-120-EG	12	120	407	174	225	238	33.5
TC12-120-G	12	120	407	174	225	238	36
TC12-150-EG	12	150	483	170	241	241	42.5
TC12-150-G	12	150	483	170	241	241	46
TC12-180-G	12	180	522	238	218	238	57

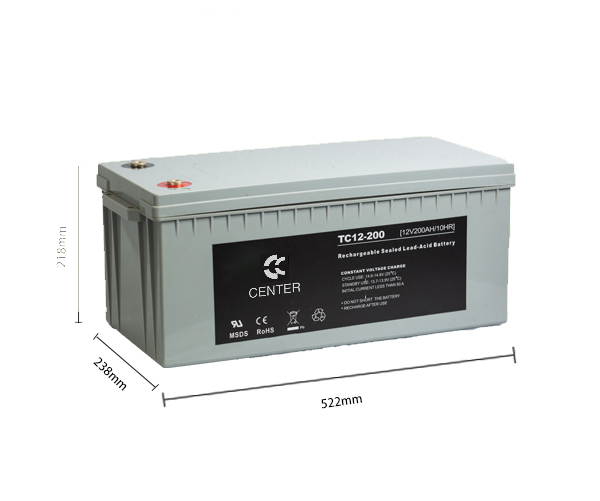

TC12-200-EG	12	200	522	240	219	244	59
TC12-200-G	12	200	522	240	219	244	61
TC12-230-G	12	230	520	269	220	220	67
TC12-250-G	12	250	520	268	220	249	72
TC12-260-G	12	260	520	269	220	220	74
TC12-55-FG	12	55	277	106	221	221	16.5
TC12-80-FG	12	80	564	115	189	189	26
TC12-100-FG	12	100	395	110	285	285	30
TC12-100-SFG	12	100	507	110	223	238	32
TC12-105-FG	12	105	395	110	285	285	33
TC12-105-SFG	12	105	507	110	223	238	33
TC12-125-FG	12	125	436	108	317	317	36
TC12-125-SFG	12	125	560	125	228	228	36
TC12-140-FG	12	140	551	110	287	287	47
TC12-150-FG	12	150	551	110	287	287	48
TC12-155-FG	12	155	551	110	316	316	49
TC12-160-FG	12	160	551	110	316	316	51
TC12-180-FG	12	180	546	125	317	323	53
TC12-200-FG	12	200	522	238	218	223	62
TC2-100-G	2	100	171	72	206	209	6.1
TC2-150-G	2	150	172	102	205	220	8
TC2-200-G	2	200	173	111	330	364	13.5
TC2-250-G	2	250	171	151	330	364	16
TC2-300-G	2	300	171	151	330	364	19
TC2-400-G	2	400	210	176	330	367	25.5
TC2-500-G	2	500	241	171	330	365	31
TC2-600-G	2	600	302	175	330	367	37
TC2-700-G	2	700	410	175	330	365	46
TC2-800-G	2	800	410	175	330	365	50
TC2-900-G	2	900	475	175	330	367	56
TC2-1000-G	2	1000	475	175	330	367	61
TC2-1500-G	2	1500	400	350	345	382	95
TC2-2000-G	2	2000	490	350	350	382	119
TC2-3000-G	2	3000	710	350	350	382	185
